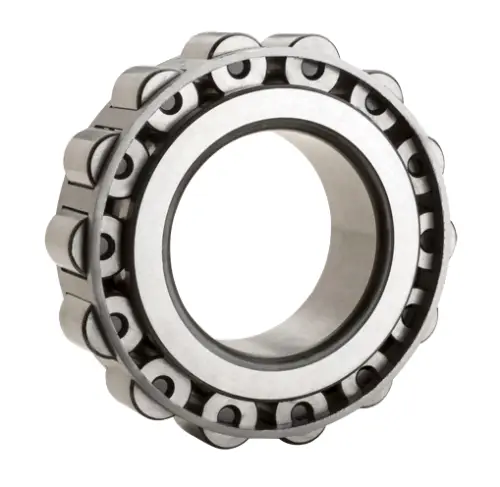

NTN MU1024X
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
284000 N
Dynamic Load Rating
184000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
B
120.000 mm
C
164.740 mm
W
28.000 mm
F
141.220 mm
R
3.180 mm
