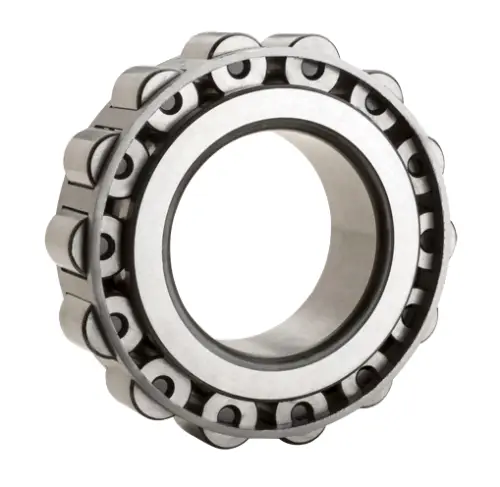

NTN MU1026L
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
340000 N
Dynamic Load Rating
229000 N
Enclosure
Open
Weight
2.341 kg
Operating Temperature Range
-40 to 120 ºC

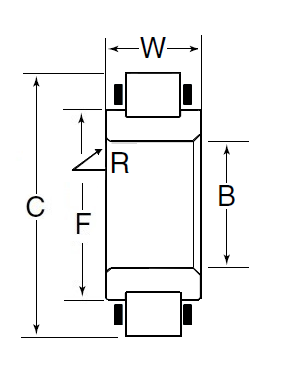

Dimensional Specifications
B
130.000 mm
C
182.580 mm
W
33.000 mm
F
154.560 mm
R
3.180 mm
