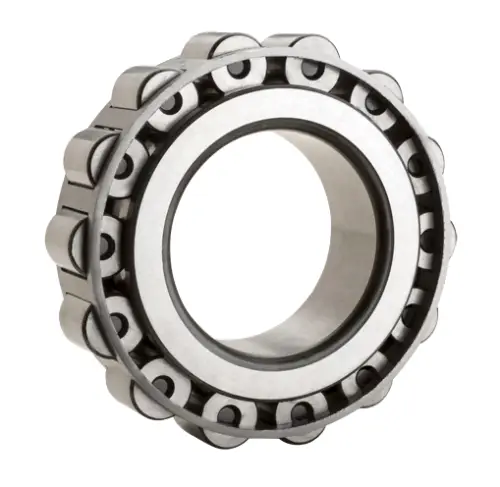

NTN MU1217L
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
194000 N
Dynamic Load Rating
154000 N
Enclosure
Open
Weight
1.324 kg
Operating Temperature Range
-40 to 120 ºC

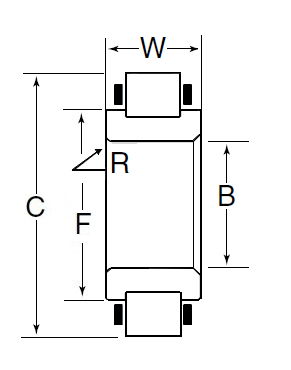

Dimensional Specifications
B
85.000 mm
C
134.210 mm
W
28.000 mm
F
108.050 mm
R
3.180 mm
