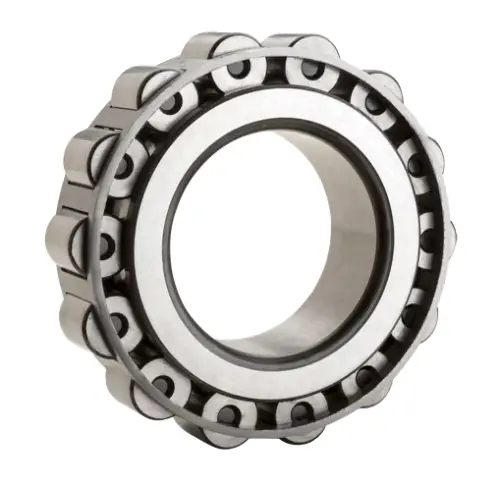

NTN MU1921V
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
133000 N
Dynamic Load Rating
85500 N
Enclosure
Open
Weight
0.553 kg
Operating Temperature Range
-40 to 120 ºC

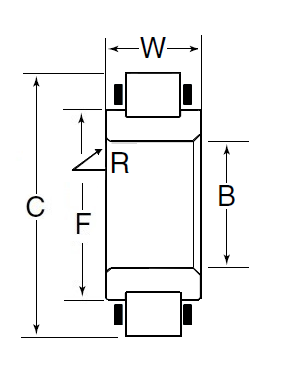

Dimensional Specifications
B
105.000 mm
C
134.750 mm
W
20.000 mm
F
118.920 mm
R
1.520 mm
