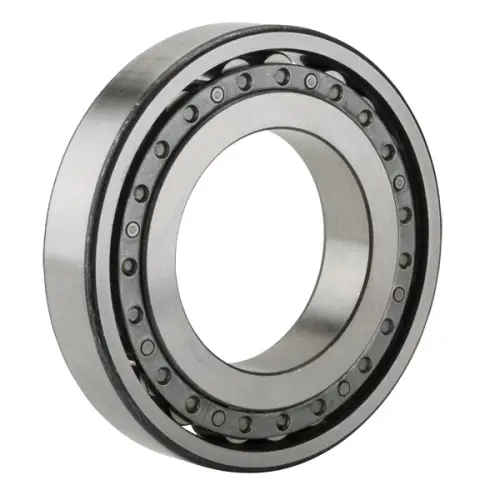

NTN MU1926CV
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
233000 N
Dynamic Load Rating
145000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

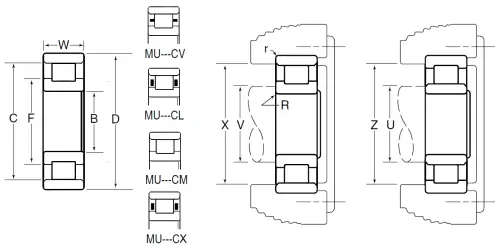

Dimensional Specifications
B
130.000 mm
D
180.000 mm
W
24.000 mm
C
167.820 mm
F
147.420 mm
R
2.030 mm
V (Rib Rings)
142.200 mm
X (Plain Rings)
171.700 mm
Z (Rib Rings)
167.600 mm
r
1.520 mm
