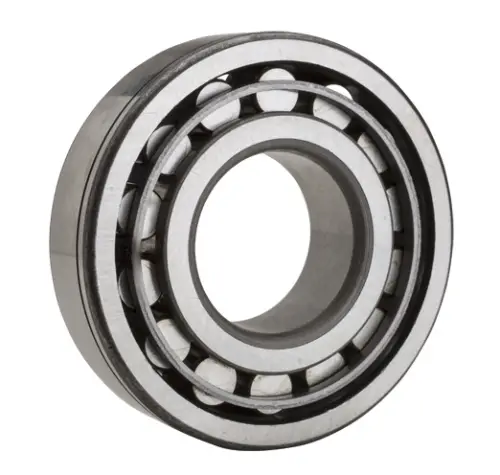

NTN MU1934DV
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
375000 N
Dynamic Load Rating
211000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

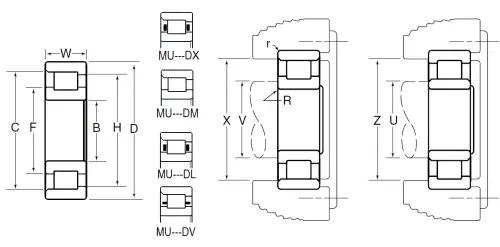

Dimensional Specifications
B
170.000 mm
D
230.000 mm
W
28.000 mm
C
214.860 mm
F
191.290 mm
H
208.990 mm
R
3.180 mm
U (Plain Rings)
181.600 mm
V (Rib Rings)
185.400 mm
X (Plain Rings)
219.200 mm
Z (Rib Rings)
214.600 mm
r
2.030 mm
