NTN MU1956DV
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1180000 N
Dynamic Load Rating
635000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

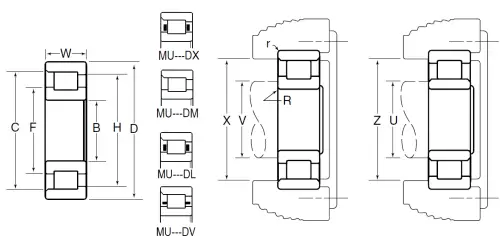

Dimensional Specifications
B
280.000 mm
D
380.000 mm
W
46.000 mm
C
354.840 mm
F
315.570 mm
H
345.080 mm
R
7.140 mm
U (Plain Rings)
299.700 mm
V (Rib Rings)
305.800 mm
X (Plain Rings)
363.000 mm
Z (Rib Rings)
354.800 mm
r
2.030 mm
