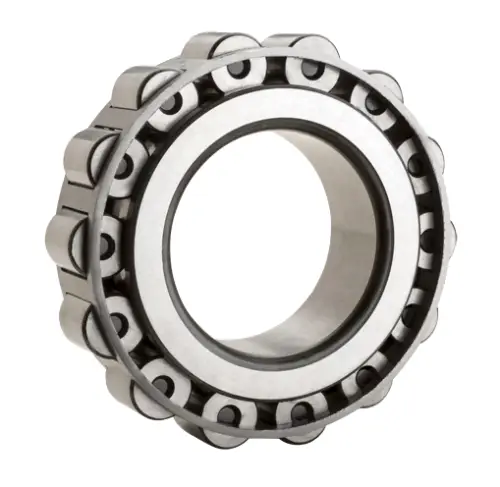

NTN MU5216L
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
340000 N
Dynamic Load Rating
229000 N
Enclosure
Open
Weight
1.740 kg
Operating Temperature Range
-40 to 120 ºC

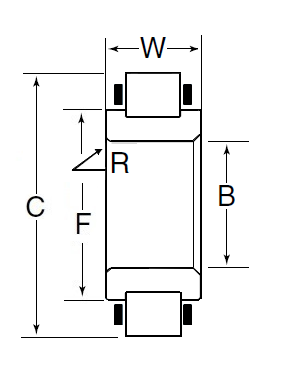

Dimensional Specifications
B
80.000 mm
C
124.660 mm
W
44.450 mm
F
100.790 mm
R
2.540 mm
