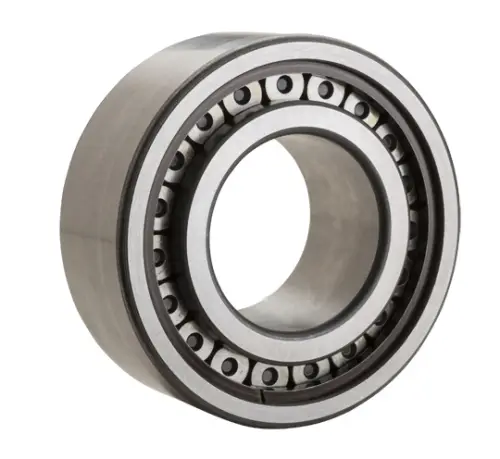

NTN MUB1205UBVMX
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
B
25.000 mm
D
52.000 mm
W
15.000 mm
C
44.860 mm
F
34.320 mm
H
42.950 mm
R
1.020 mm
r
1.020 mm
