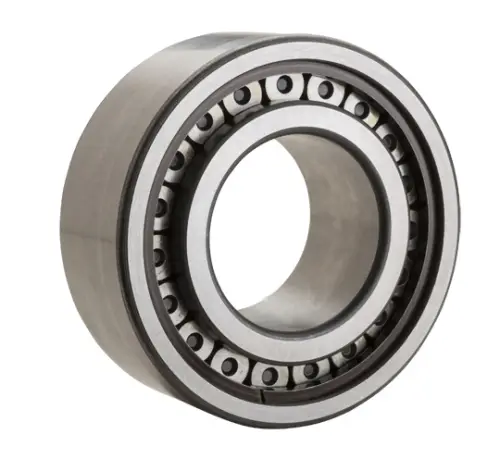

NTN MUB1307UBM
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
90500 N
Dynamic Load Rating
79500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

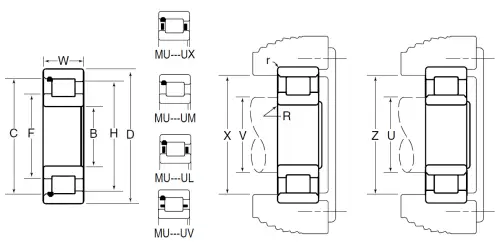

Dimensional Specifications
B
35.000 mm
D
80.000 mm
W
21.000 mm
C
67.940 mm
F
50.670 mm
H
64.470 mm
R
1.520 mm
V (Rib Rings)
50.673 mm
X (Plain Rings)
67.947 mm
Z (Rib Rings)
64.465 mm
r
1.520 mm
