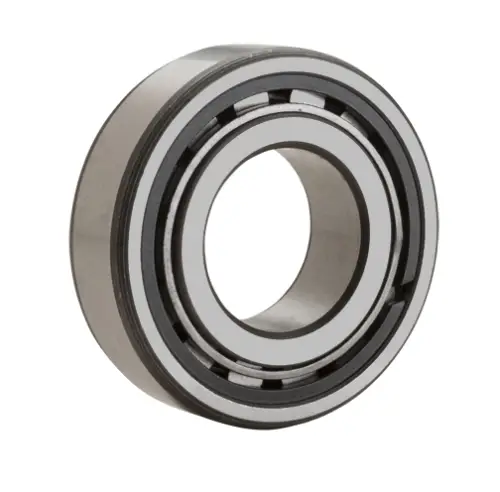

NTN MUC1309TM
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Enclosure
Open
Weight
1.049 kg
Operating Temperature Range
-40 to 120 ºC

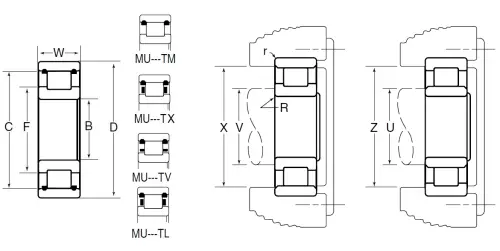

Dimensional Specifications
B
40.000 mm
D
100.000 mm
W
25.000 mm
C
86.110 mm
F
64.130 mm
R
2.030 mm
U (Plain Rings)
55.900 mm
V (Rib Rings)
59.200 mm
X (Plain Rings)
90.400 mm
Z (Rib Rings)
86.100 mm
r
1.520 mm
