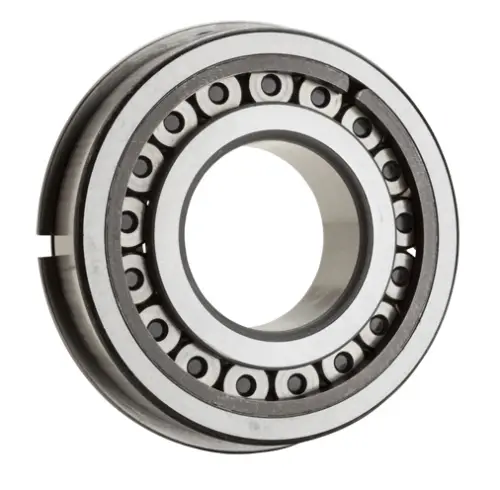

NTN MUF1211GUXR
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
95500 N
Dynamic Load Rating
70000 N
Enclosure
Open
Weight
0.753 kg
Operating Temperature Range
-40 to 120 ºC

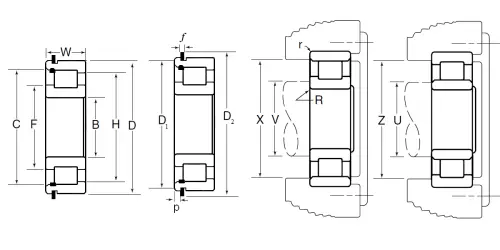

Dimensional Specifications
B
55.000 mm
D
100.000 mm
W
21.000 mm
C
88.010 mm
F
70.740 mm
H
84.530 mm
D1
96.800 mm
D2
106.380 mm
p
3.18 mm
f
2.410 mm
R
2.030 mm
U (Plain Rings)
64.000 mm
V (Rib Rings)
66.800 mm
X (Plain Rings)
91.400 mm
Z (Rib Rings)
87.900 mm
r
1.520 mm
