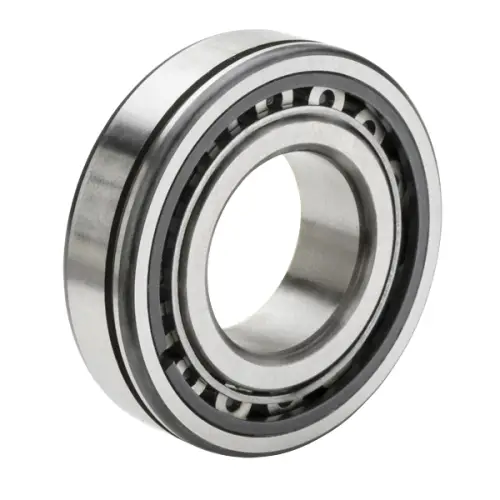

NTN MUF1306UGV
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One-Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
52500 N
Dynamic Load Rating
52000 N
Enclosure
Open
Weight
0.382 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
B
30.000 mm
D
72.000 mm
W
19.000 mm
C
60.400 mm
F
44.250 mm
H
56.870 mm
D1
68.810 mm
g
1.980 mm
p
3.18 mm
R
1.520 mm
U (Plain Rings)
37.800 mm
V (Rib Rings)
40.600 mm
X (Plain Rings)
64.000 mm
Z (Rib Rings)
60.200 mm
r
1.020 mm
