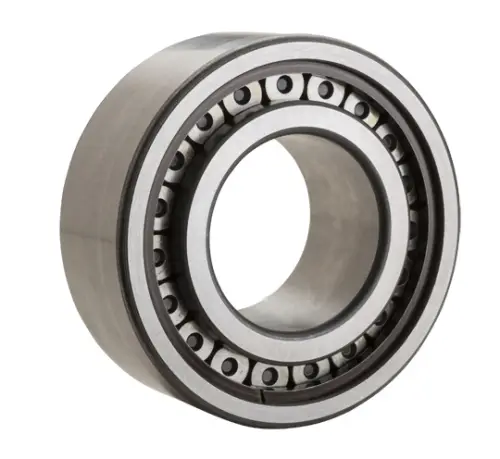

NTN MUS1308UM
Single Row Cylindrical Roller Bearings - Non-Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
106000 N
Dynamic Load Rating
96000 N
Enclosure
Open
Weight
0.784 kg
Operating Temperature Range
-40 to 120 ºC

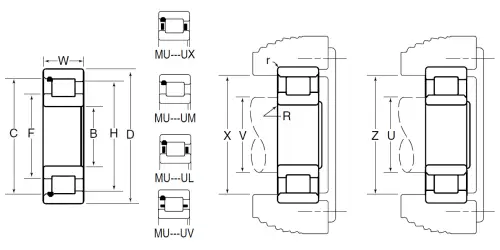

Dimensional Specifications
B
40.000 mm
D
90.000 mm
W
23.000 mm
C
77.670 mm
F
57.000 mm
H
73.330 mm
R
1.520 mm
U (Plain Rings)
49.000 mm
V (Rib Rings)
52.100 mm
X (Plain Rings)
81.300 mm
Z (Rib Rings)
77.500 mm
r
1.520 mm
