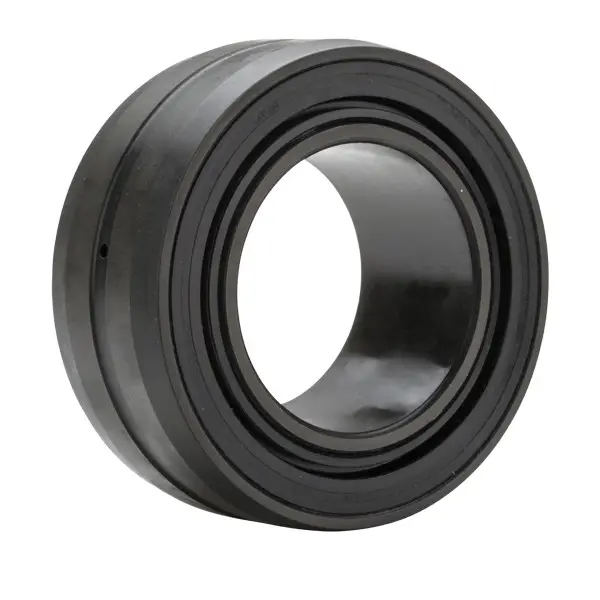

NTN MX-W22215EALLKW33C3
Sealed Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel (IR/OR are phosphate coated)
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
2000 RPM
Taper
1:12
Seal Material
Nitrile Rubber
Precision Rating
Standard
Ring Modification
Relube
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
249000 N
Dynamic Load Rating
244000 N
Enclosure
Double Sealed
Weight
2.059 kg
Operating Temperature Range
-40 to 200 ºC

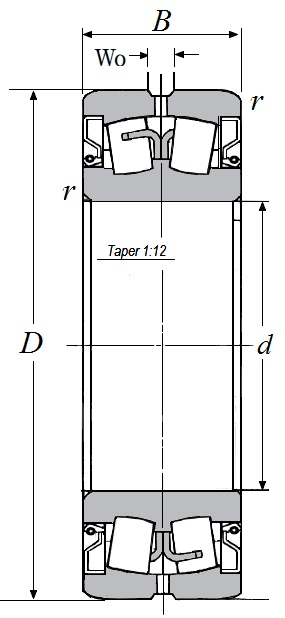

Dimensional Specifications
d
75.000 mm
D
130.000 mm
B
46.500 mm
r
1.000 mm
W0
7.000 mm
