NTN MX-W22224EALLKW33C3
Sealed Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel (IR/OR are phosphate coated)
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
1300 RPM
Taper
1:12
Seal Material
Nitrile Rubber
Precision Rating
Standard
Ring Modification
Relube
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
753000 N
Dynamic Load Rating
688000 N
Enclosure
Double Sealed
Weight
10.102 kg
Operating Temperature Range
-40 to 200 ºC

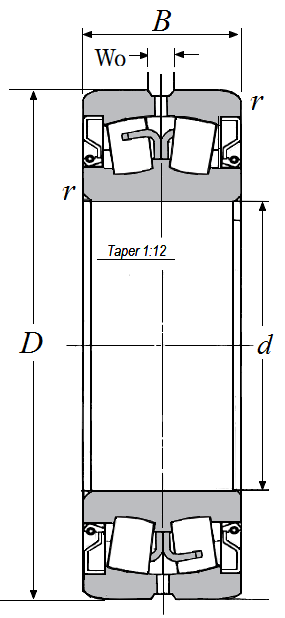

Dimensional Specifications
d
120.000 mm
D
215.000 mm
B
76.000 mm
r
1.500 mm
W0
12.000 mm
