NTN N1068
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
1200 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1670000 N
Dynamic Load Rating
1050000 N
Enclosure
Open
Weight
60.500 kg

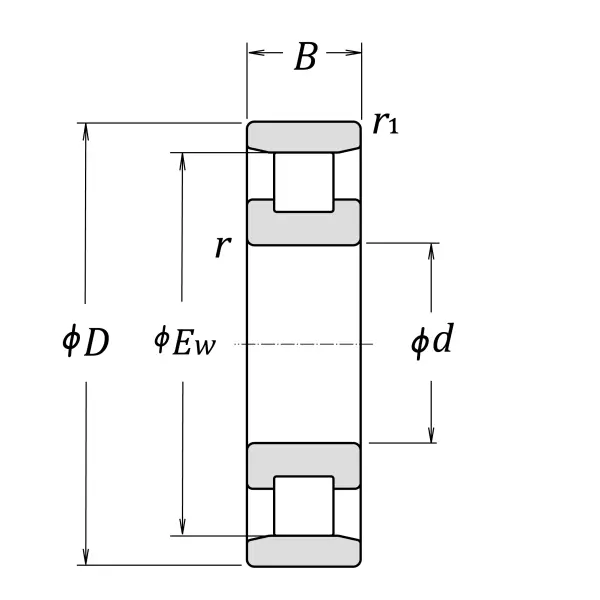

Dimensional Specifications
d
340.000 mm
D
520.000 mm
B
82.000 mm
Ew
475.000 mm
J
430.000 mm
r
5.000 mm

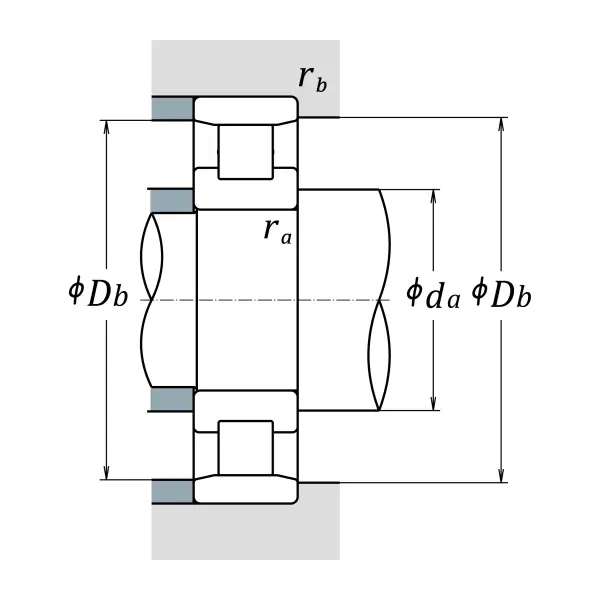

da min
360.000 mm
db min
360.000 mm
Da max
500.000 mm
Db max
500.000 mm
Db min
500.000 mm
r1as max
5.000 mm
