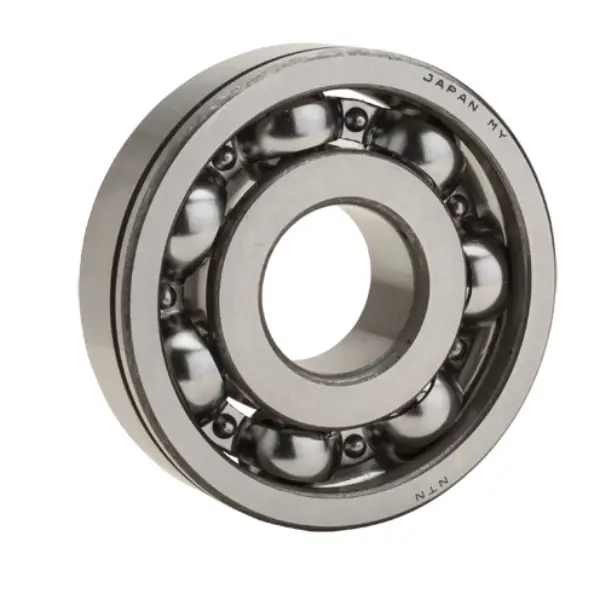

NTN N1211L
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
4500 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
43820 N
Dynamic Load Rating
48100 N
Enclosure
Open
Weight
0.641 kg
Operating Temperature Range
-40 to 120 ºC

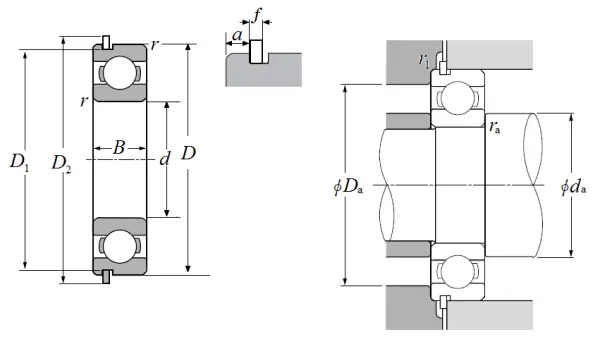

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
17.272 mm
D1
96.799 mm
D2
103.983 mm
a
2.870 mm
f
2.413 mm
r
1.524 mm
r1
0.500 mm
da min
63.000 mm
da max
67.000 mm
Da max
92.000 mm
ras max
1.500 mm
