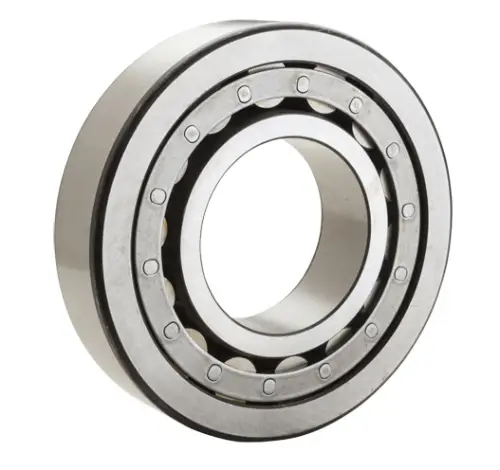

NTN NJ204C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
20000 RPM
Limiting Speed - Grease
17000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
13900 N
Dynamic Load Rating
16600 N
Enclosure
Open
Weight
0.111 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
14.000 mm
Fw
27.000 mm
J
29.900 mm
r
1.000 mm
da min
24.000 mm
db min
25.000 mm
r1as max
0.600 mm
