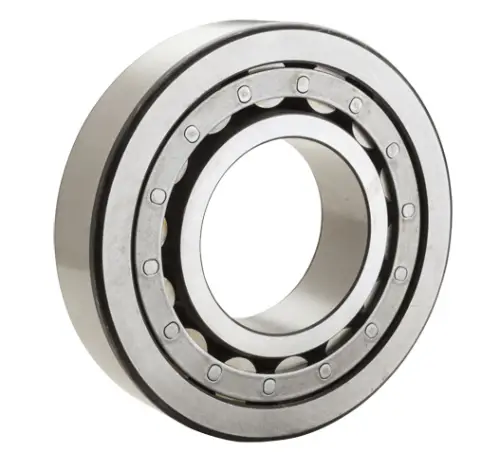

NTN NJ204E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
18000 RPM
Limiting Speed - Grease
15000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
22600 N
Dynamic Load Rating
25700 N
Enclosure
Open
Weight
0.122 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
14.000 mm
Fw
26.500 mm
J
29.500 mm
r
1.000 mm
da min
24.000 mm
Da max
42.000 mm
r1as max
0.600 mm
