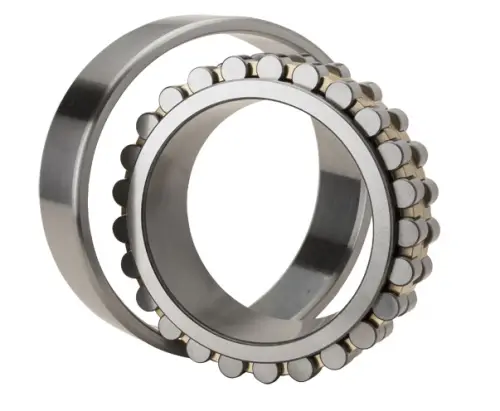

NTN NN3005C1NAP5
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
17000 RPM
Limiting Speed - Grease
14000 RPM
Precision
ISO Class 5
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C1NA
Static Load Rating
30000 N
Dynamic Load Rating
25800 N
Enclosure
Open
Weight
0.123 kg
Operating Temperature Range
-40 to 120 ºC

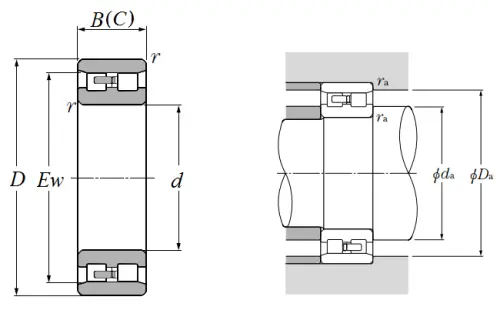

Dimensional Specifications
d
25.000 mm
D
47.000 mm
B
16.000 mm
C
16.000 mm
Ew
41.300 mm
r
0.600 mm
da min
29.000 mm
db min
30.000 mm
Db min
42.000 mm
Db max
43.000 mm
ras max
0.600 mm
