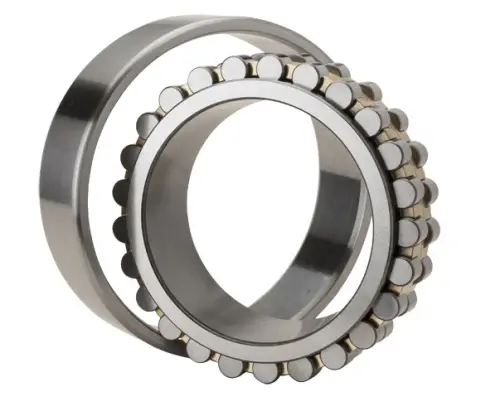

NTN NN3007P5
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
17300 RPM
Limiting Speed - Grease
14300 RPM
Precision
ISO Class 5
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
47500 N
Dynamic Load Rating
38000 N
Enclosure
Open
Weight
0.251 kg
Operating Temperature Range
-40 to 120 ºC

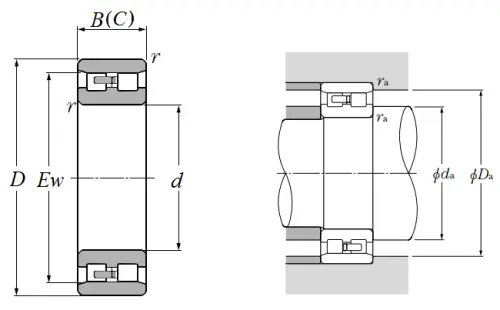

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
23.000 mm
C
23.000 mm
Ew
67.500 mm
r
1.000 mm
da min
40.000 mm
db min
41.500 mm
Db min
56.000 mm
Db max
57.000 mm
ras max
1.000 mm
