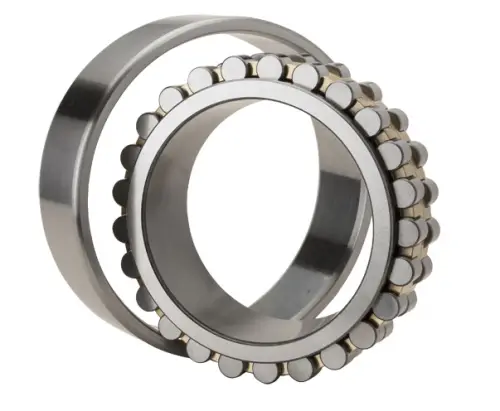

NTN NN3008C1NAP4
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9700 RPM
Precision
ISO Class 4
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C1NA
Static Load Rating
55500 N
Dynamic Load Rating
43500 N
Enclosure
Open
Weight
0.307 kg
Operating Temperature Range
-40 to 120 ºC

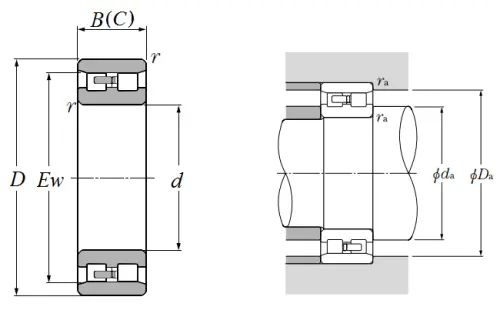

Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
21.000 mm
C
21.000 mm
Ew
61.000 mm
r
1.000 mm
da min
45.000 mm
db min
47.000 mm
Db min
62.000 mm
Db max
63.000 mm
ras max
1.000 mm
