NTN NN3010
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
7400 RPM
Limiting Speed - Grease
5400 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
72500 N
Dynamic Load Rating
53000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

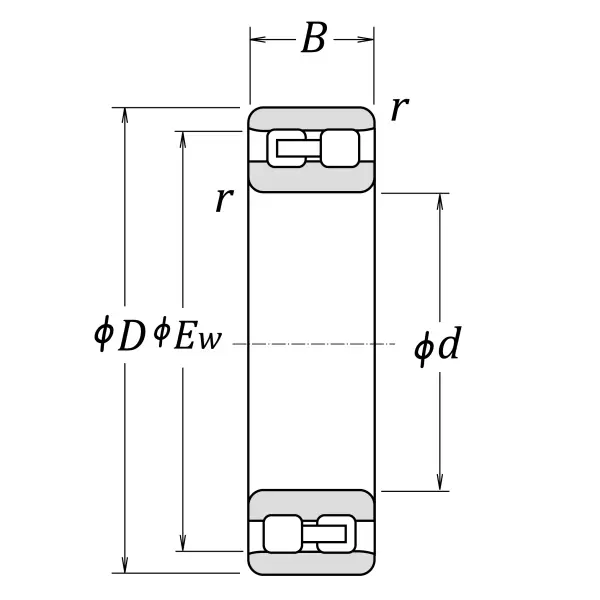

Dimensional Specifications
d
50.000 mm
D
80.000 mm
B
23.000 mm
C
23.000 mm
Ew
72.500 mm
r
1.000 mm

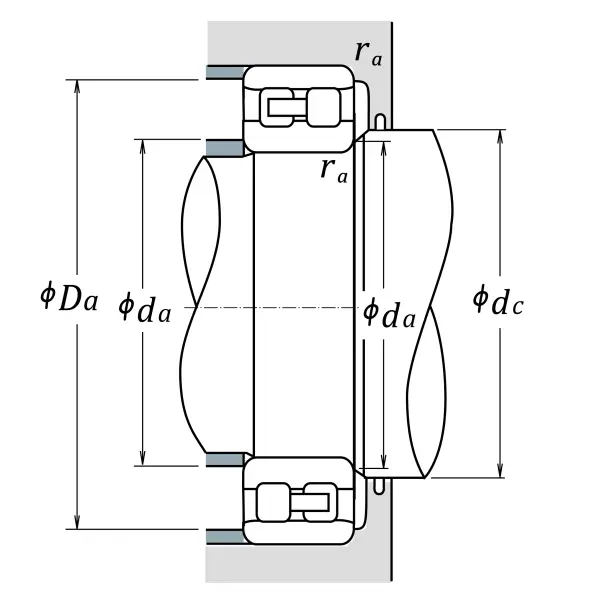

da min
55.000 mm
db min
57.000 mm
Db min
74.000 mm
Db max
75.000 mm
ras max
1.000 mm
