NTN NN3014
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
6800 RPM
Limiting Speed - Grease
5800 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
143000 N
Dynamic Load Rating
94500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

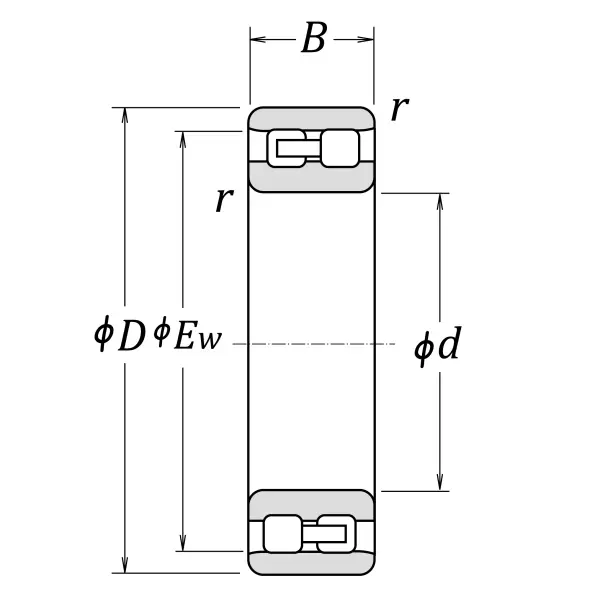

Dimensional Specifications
d
70.000 mm
D
110.000 mm
B
30.000 mm
C
30.000 mm
Ew
100.000 mm
r
1.100 mm

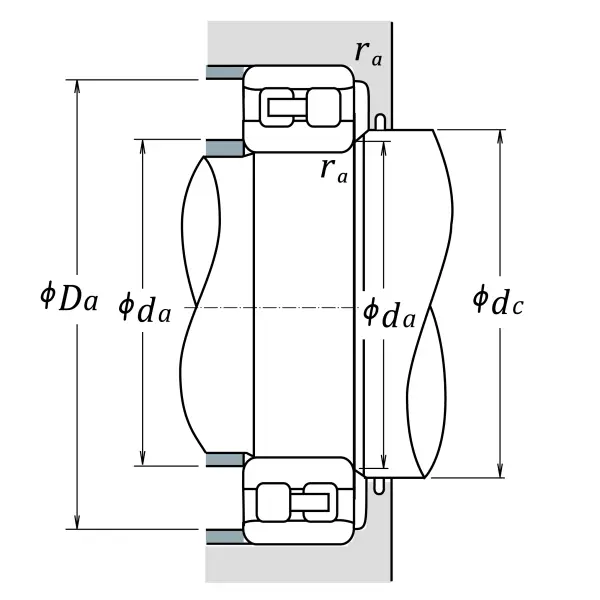

da min
76.500 mm
db min
79.000 mm
Db min
101.000 mm
Db max
103.500 mm
ras max
1.000 mm
