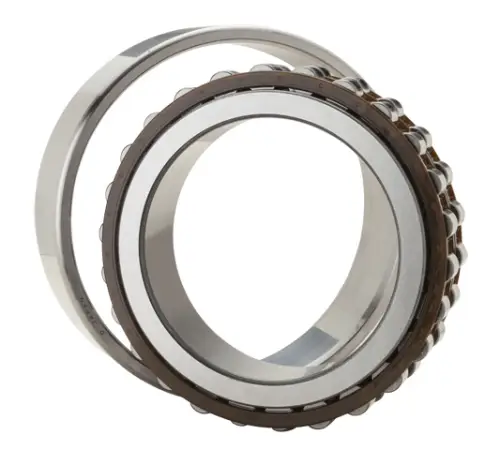

NTN NN3016T5KC1NAUP-20
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
5900 RPM
Limiting Speed - Grease
5100 RPM
Taper
1:12
Precision
Special Precision
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C1NA
Static Load Rating
179000 N
Dynamic Load Rating
116000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
80.000 mm
D
125.000 mm
B
34.000 mm
C
34.000 mm
Ew
113.000 mm
r
1.100 mm
da min
86.500 mm
db min
89.500 mm
Da max
114.000 mm
Db min
114.000 mm
Db max
118.500 mm
ras max
1.000 mm
