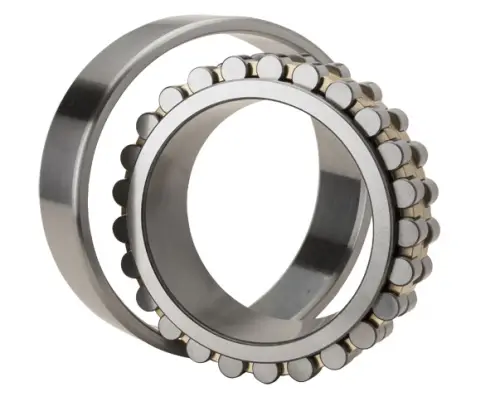

NTN NN3017C1NAP4
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
5600 RPM
Limiting Speed - Grease
4800 RPM
Precision
ISO Class 4
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C1NA
Static Load Rating
194000 N
Dynamic Load Rating
122000 N
Enclosure
Open
Weight
1.601 kg
Operating Temperature Range
-40 to 120 ºC

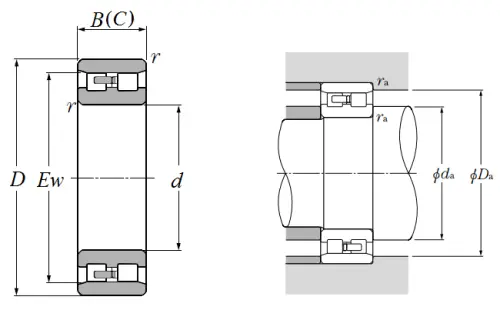

Dimensional Specifications
d
85.000 mm
D
130.000 mm
B
34.000 mm
C
34.000 mm
Ew
118.000 mm
r
1.100 mm
da min
91.500 mm
db min
94.500 mm
Db min
119.000 mm
Db max
123.500 mm
ras max
1.000 mm
