NTN NN3926KD1XC0NAUP
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Taper
1:12
Precision
Special Precision
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
C0NA
Static Load Rating
315000 N
Dynamic Load Rating
169000 N
Enclosure
Open
Weight
2.694 kg
Operating Temperature Range
-40 to 120 ºC

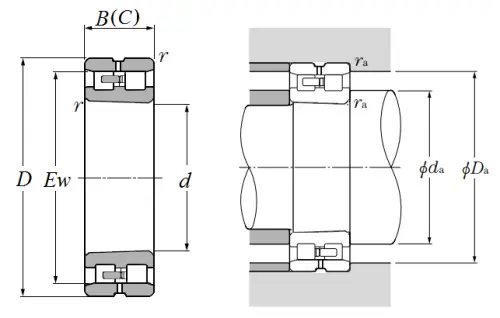

Dimensional Specifications
d
130.000 mm
D
180.000 mm
B
37.000 mm
C
37.000 mm
Ew
168.000 mm
r
1.500 mm
da min
138.000 mm
ras max
1.500 mm
