NTN NN4948HSKD1XC9NAP4
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Taper
1:12
Precision
ISO Class 4
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
C9NA
Static Load Rating
1410000 N
Dynamic Load Rating
610000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

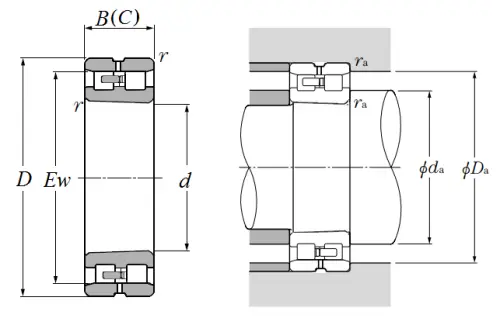

Dimensional Specifications
d
240.000 mm
D
320.000 mm
B
80.000 mm
C
80.000 mm
Ew
301.000 mm
r
2.100 mm
da min
251.000 mm
db min
258.000 mm
Da max
304 mm
Db min
304.000 mm
Db max
309.000 mm
ras max
2.000 mm
