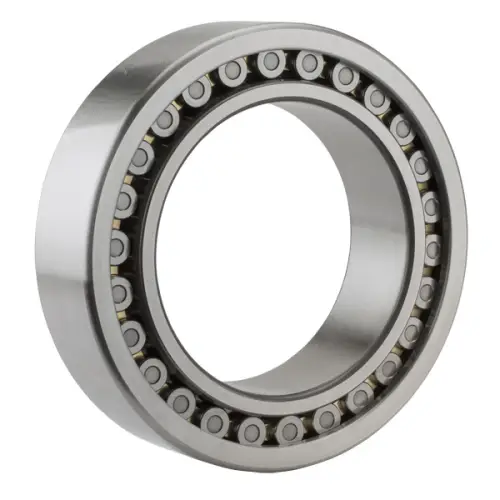

NTN NNU3026NAP5
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
3100 RPM
Precision
ISO Class 5
Configuration
Two
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C0NA
Static Load Rating
475000 N
Dynamic Load Rating
284000 N
Enclosure
Open
Weight
5.470 kg
Operating Temperature Range
-40 to 120 ºC

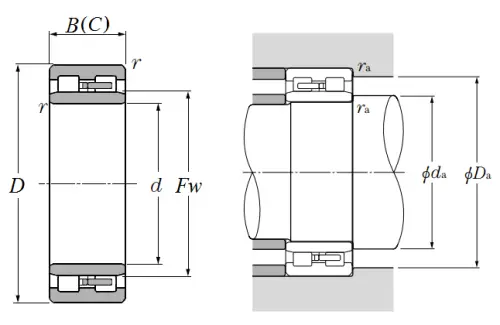

Dimensional Specifications
d
130.000 mm
D
200.000 mm
B
52.000 mm
C
52.000 mm
Fw
150.000 mm
r
2.000 mm
da min
139.000 mm
db min
143.000 mm
Db min
183.000 mm
Db max
191.000 mm
ras max
2.000 mm
