NTN NNU4930K
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
3300 RPM
Limiting Speed - Grease
2800 RPM
Taper
1:12
Precision
ISO Class 0
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
690000 N
Dynamic Load Rating
345000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

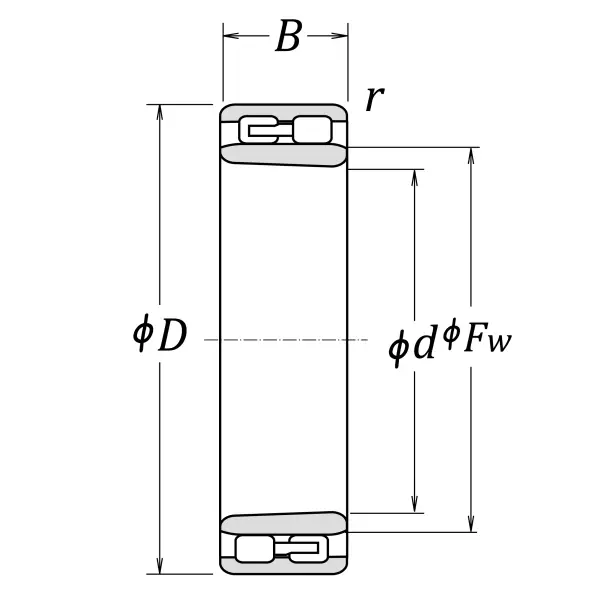

Dimensional Specifications
d
150.000 mm
D
210.000 mm
B
60.000 mm
C
60.000 mm
Fw
168.500 mm
r
2.000 mm

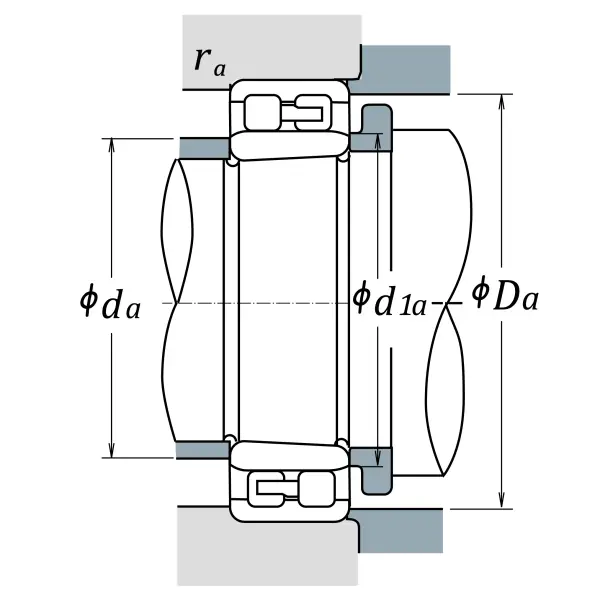

da min
159.000 mm
db min
164.000 mm
Da max
201.000 mm
Db min
198.500 mm
Db max
201.000 mm
ras max
2.000 mm
