NTN NNU4936K
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Tapered
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
2300 RPM
Taper
1:12
Precision
ISO Class 0
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
965000 N
Dynamic Load Rating
460000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

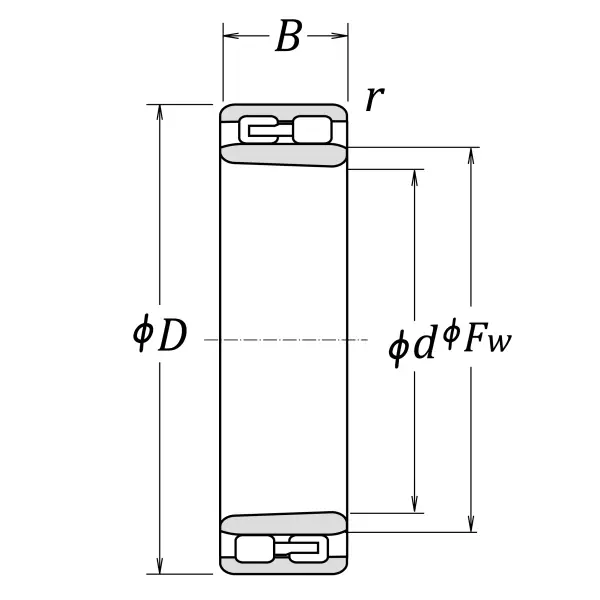

Dimensional Specifications
d
180.000 mm
D
250.000 mm
B
69.000 mm
C
69.000 mm
Fw
202.000 mm
r
2.000 mm

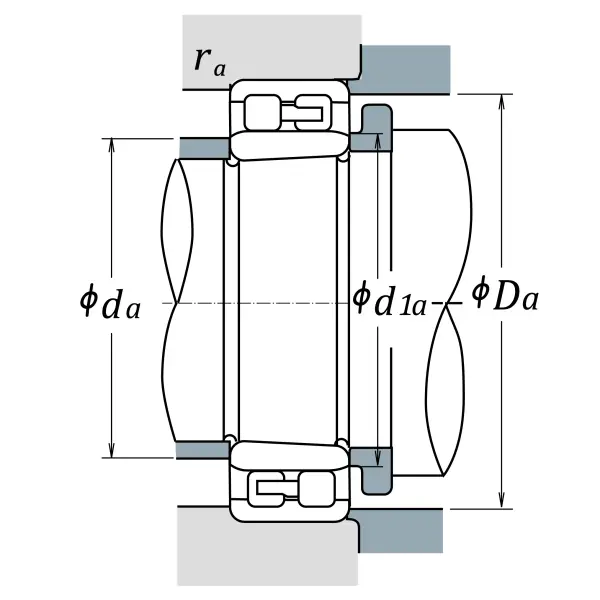

da min
189.000 mm
db min
195.000 mm
Da max
241.000 mm
Db min
236.000 mm
Db max
241.000 mm
ras max
2.000 mm
