NTN NNU4944C3
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Cylindrical
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
2200 RPM
Limiting Speed - Grease
1900 RPM
Precision
ISO Class 0
Configuration
Two
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
1300000 N
Dynamic Load Rating
585000 N
Enclosure
Open
Weight
16.900 kg
Operating Temperature Range
-40 to 120 ºC

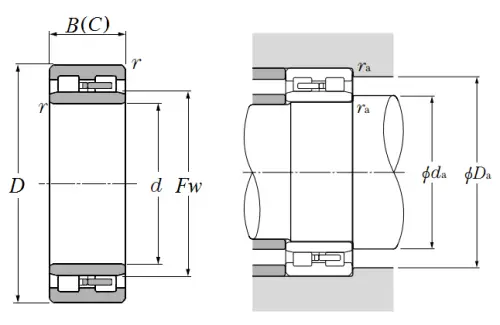

Dimensional Specifications
d
220.000 mm
D
300.000 mm
B
80.000 mm
C
80.000 mm
Fw
245.000 mm
r
2.100 mm
da min
231 mm
db min
238.000 mm
Da max
289 mm
Db min
284.000 mm
Db max
289.000 mm
ras max
2.000 mm
