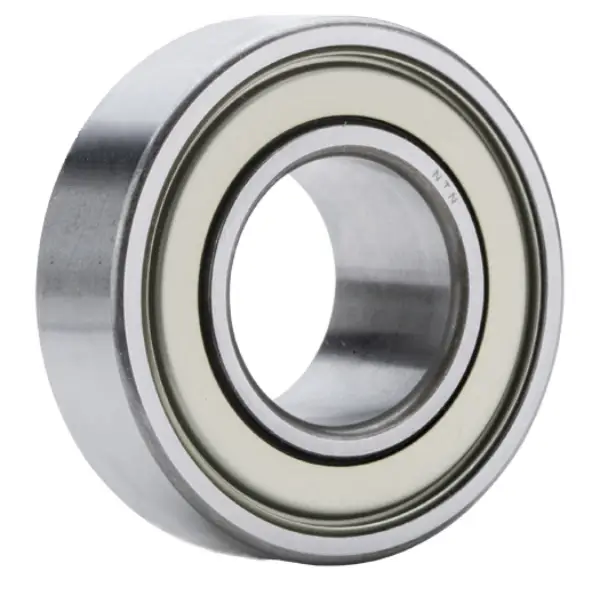

NTN NPC010RP
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
7500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
None
Lubrication
Non-Relubricatable
Radial Internal Clearance
CN
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Weight
0.109 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
15.875 mm
D
40.000 mm
C
13.000 mm
B
19.000 mm
B1
28.600 mm
r
0.600 mm
S
6.500 mm
r1
0.400 mm
Specifications
Radial Dynamic Load Rating
9600 N
Lubrication
No
Radial Static Load Rating
4600 N
