NTN NPC010RPC
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
7500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL202-010
Basic Outer Ring
202
Radial Internal Clearance
C3
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Weight
0.130 kg
Operating Temperature Range
-40 to 120 ºC

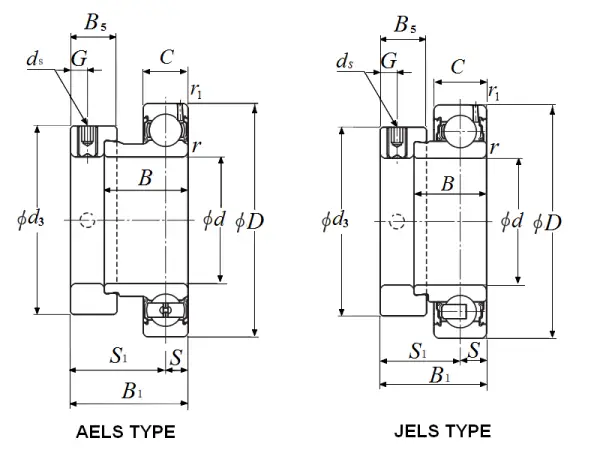

Dimensional Specifications
d
15.875 mm
D
40.000 mm
C
13.000 mm
B
19.000 mm
B1
28.600 mm
r
0.600 mm
ds
1/4-28 UNF
G
4.800 mm
d3
29.000 mm
B5
13.600 mm
S1
22.100 mm
S
6.500 mm
r1
0.400 mm
Specifications
Radial Dynamic Load Rating
9600 N
Lubrication
No
Radial Static Load Rating
4600 N
