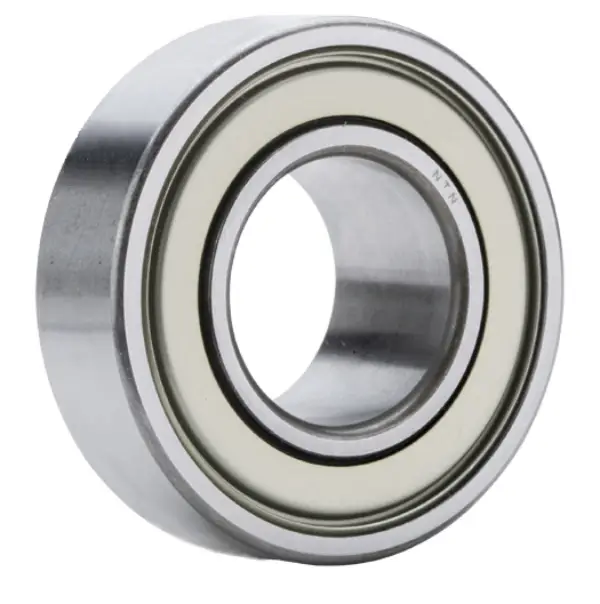

NTN NPC012RP
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
5000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
None
Lubrication
Non-Relubricatable
Radial Internal Clearance
C3
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Weight
0.136 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
r1
0.600 mm
Specifications
Radial Dynamic Load Rating
12800 N
Lubrication
No
Radial Static Load Rating
6650 N
