NTN NPC015RPC
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4450 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL205-015
Basic Outer Ring
205
Radial Internal Clearance
CN
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Weight
0.210 kg
Operating Temperature Range
-40 to 120 ºC

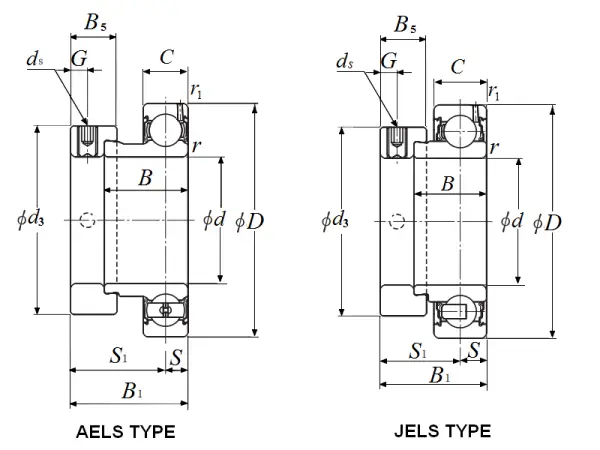

Dimensional Specifications
d
23.813 mm
D
52.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
ds
1/4-28 UNF
G
4.800 mm
d3
38.100 mm
B5
13.494 mm
S1
23.500 mm
S
7.500 mm
r1
0.600 mm
Specifications
Radial Dynamic Load Rating
14000 N
Lubrication
No
Radial Static Load Rating
7850 N
