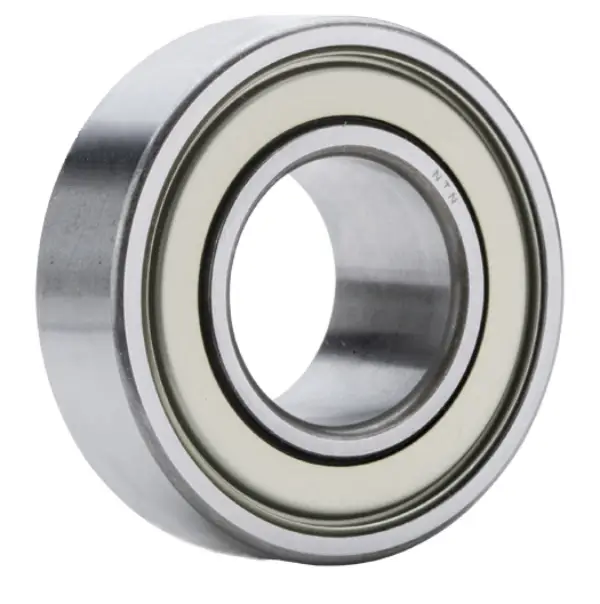

NTN NPC102RP
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3650 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
None
Lubrication
Non-Relubricatable
Basic Outer Ring
206
Radial Internal Clearance
C4
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
0.318 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
31.750 mm
D
62.000 mm
C
18.000 mm
B
23.800 mm
B1
35.700 mm
r
1.000 mm
S
9.000 mm
r1
1.000 mm
Specifications
Radial Dynamic Load Rating
19500 N
Lubrication
No
Radial Static Load Rating
11300 N
