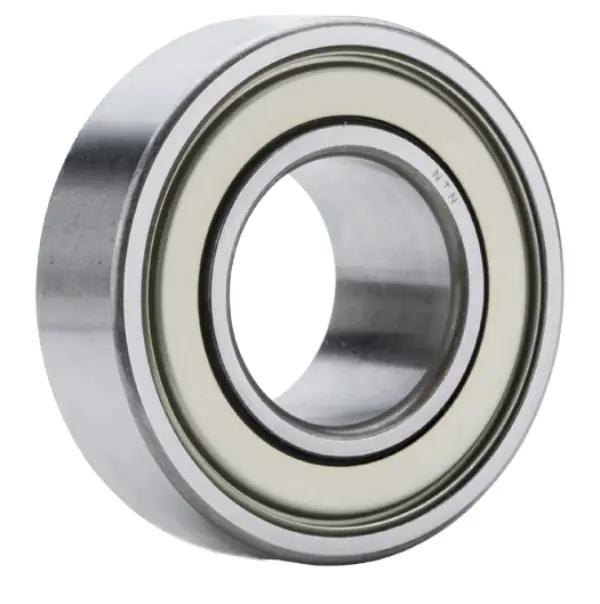

NTN NPC103RP
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
None
Lubrication
Non-Relubricatable
Radial Internal Clearance
C3
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
0.340 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.163 mm
D
62.000 mm
C
18.000 mm
B
23.800 mm
B1
35.700 mm
r
1.000 mm
S
9.000 mm
r1
1.000 mm
