NTN NPC103RPC
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3650 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL206-103
Basic Outer Ring
206
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
0.340 kg
Operating Temperature Range
-40 to 120 ºC

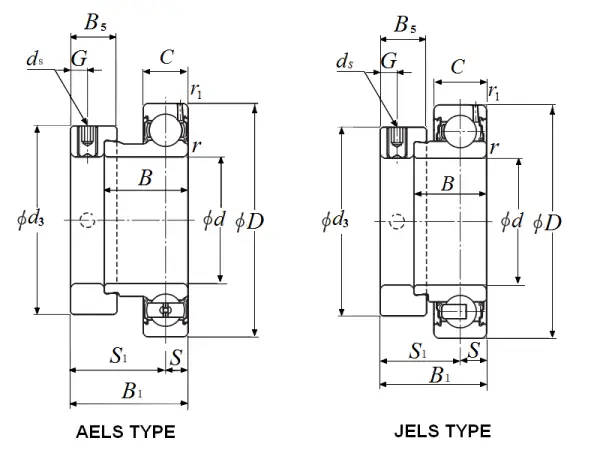

Dimensional Specifications
d
30.163 mm
D
62.000 mm
C
18.000 mm
B
23.800 mm
B1
35.700 mm
r
1.000 mm
ds
5/16-24 UNF
G
6.000 mm
d3
44.450 mm
B5
15.875 mm
S1
26.700 mm
S
9.000 mm
r1
1.000 mm
Specifications
Radial Dynamic Load Rating
19500 N
Lubrication
No
Radial Static Load Rating
11300 N
