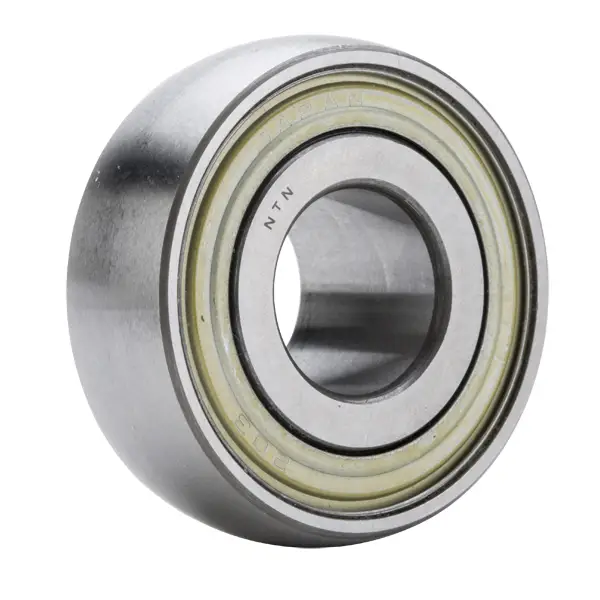

NTN NPS100RR
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
5900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Lubrication
Outer Ring
Basic Outer Ring
205
Radial Internal Clearance
C3
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Weight
0.900 kg
Operating Temperature Range
-40 to 120 ºC

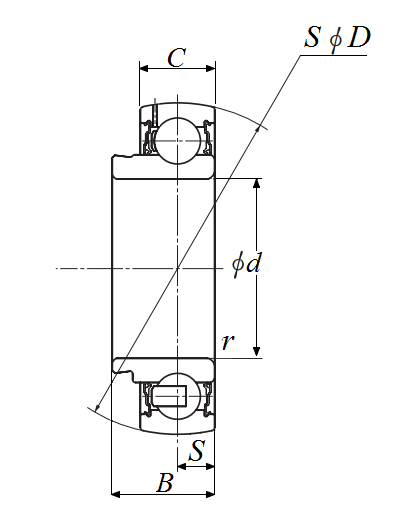

Dimensional Specifications
d
25.400 mm
D
52.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
S
7.500 mm
F
4 mm
Specifications
Radial Dynamic Load Rating
14000 N
Lubrication
Outer Ring
Radial Static Load Rating
7850 N
