NTN NPS107RP2C
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
2285 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL207-107
Lubrication
No
Collar Number
C-107-2
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
2.190 kg
Operating Temperature Range
-40 to 120 ºC

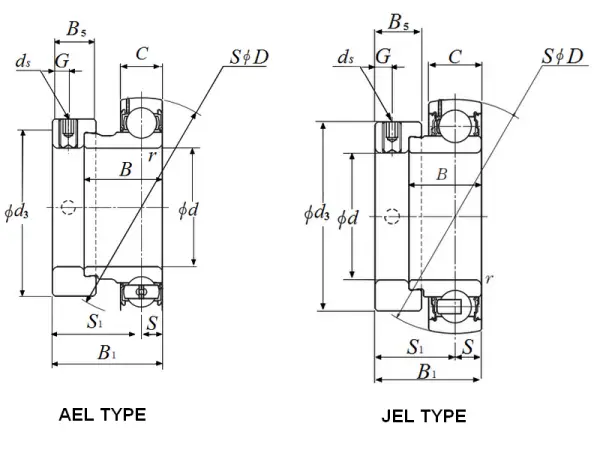

Dimensional Specifications
d
38.103 mm
D
72.000 mm
C
18.085 mm
B
26.911 mm
B1
40.511 mm
r
1.000 mm
ds
3/8-16 UNC
G
6.700 mm
d3
55.75 mm
B5
17.500 mm
S1
30.831 mm
S
9.68 mm
Specifications
Radial Dynamic Load Rating
25700 N
Lubrication
No
Radial Static Load Rating
15300 N
