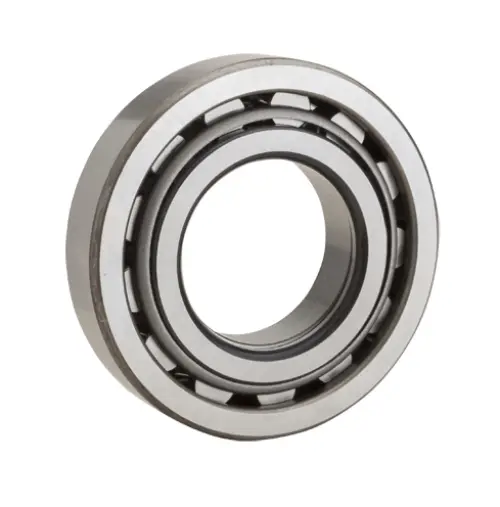

NTN NUP1084
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
1100 RPM
Limiting Speed - Grease
950 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
2290000 N
Dynamic Load Rating
1350000 N
Enclosure
Open
Weight
91.000 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
420.000 mm
D
620.000 mm
B
90.000 mm
J
490.000 mm
r
5.000 mm
da min
440.000 mm
db min
440.000 mm
Da max
600.000 mm
Db max
600.000 mm
Db min
574.000 mm
r1as max
4.000 mm
