NTN R2-6
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Snap Type)
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
58000 RPM
Limiting Speed - Grease
49000 RPM
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
224 N
Dynamic Load Rating
640 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

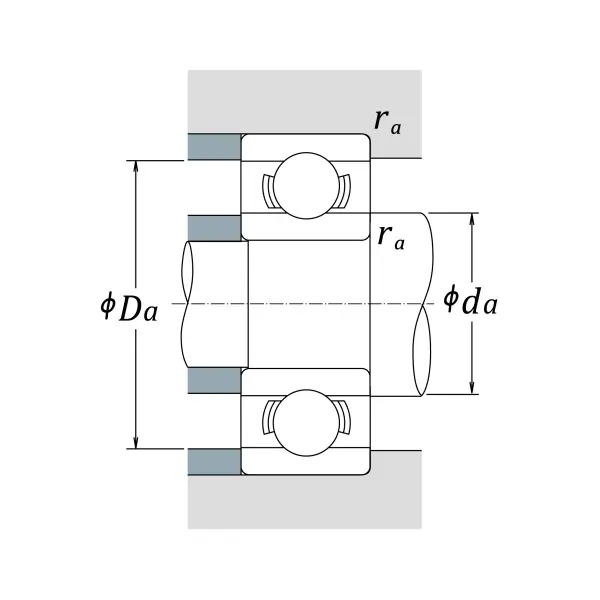

Dimensional Specifications
d
3.175 mm
D
9.525 mm
B
2.779 mm
r
0.130 mm
