NTN R2ZZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome
Cage Type
Stainless
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
49000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
CN
Static Load Rating
224 N
Dynamic Load Rating
640 N
Enclosure
Removable Double Shield
Weight
0.001 kg
Operating Temperature Range
-40 to 120 ºC

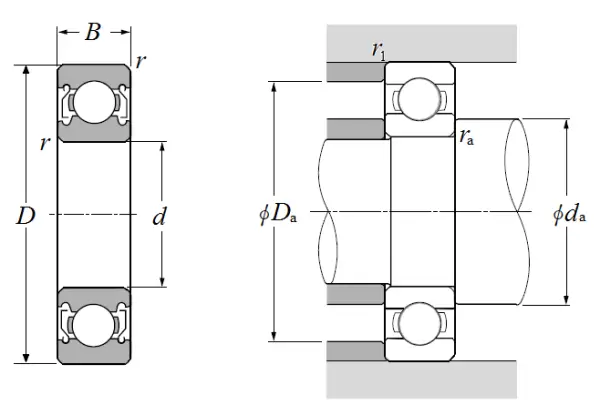

Dimensional Specifications
d
3.175 mm
D
9.525 mm
B
3.967 mm
r
0.305 mm
