NTN R8ZC3
Single Row Radial Ball Bearings
(BRAND):NTN
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
R8ZC3
Single Row Radial Ball Bearings
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
30000 RPM
Limiting Speed - Grease
27000 RPM
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
2250 N
Dynamic Load Rating
3950 N
Enclosure
Single Shielded
Weight
0.018 kg
Operating Temperature Range
-40 to 120 ºC

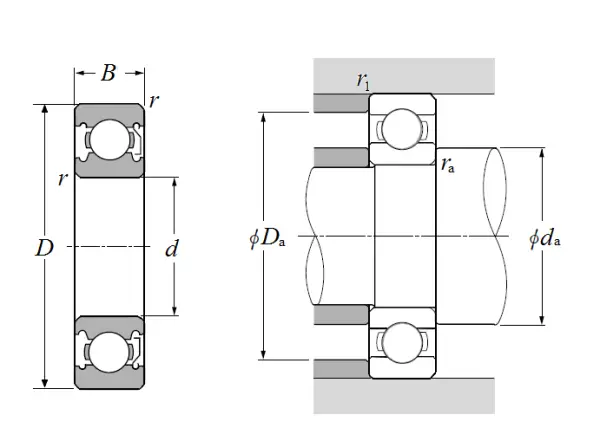

Dimensional Specifications
d
12.700 mm
D
28.575 mm
B
7.938 mm
r
0.406 mm
