NTN RA1-5ZZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
56000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
152 N
Dynamic Load Rating
430 N
Enclosure
Removable Double Shield
Operating Temperature Range
-40 to 120 ºC

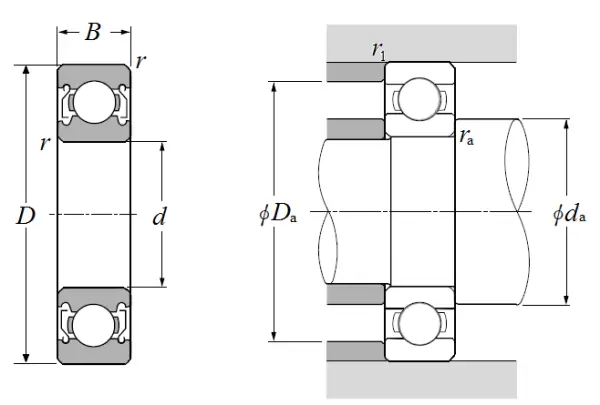

Dimensional Specifications
d
2.380 mm
D
7.938 mm
B
3.571 mm
r
0.130 mm
