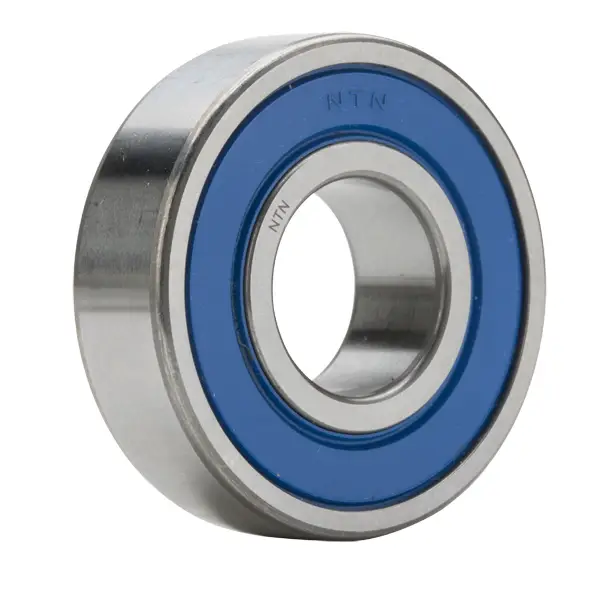

NTN SC00A11LLH1C3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Goove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile
Precision
P0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
1950 N
Dynamic Load Rating
4580 N
Enclosure
Double Sealed
Weight
0.028 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
10.000 mm
D
27.000 mm
B
11.000 mm
r
0.300 mm
r1
0.300 mm
ras max
0.300 mm
