NTN SES206-19
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Stainless Steel
Ball Material
Steel
Limiting Speed - Grease
5300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL206-19
Lubrication
Relubricatable
Basic Outer Ring
206
Radial Internal Clearance
CN
Static Load Rating
11500 N
Dynamic Load Rating
15300 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

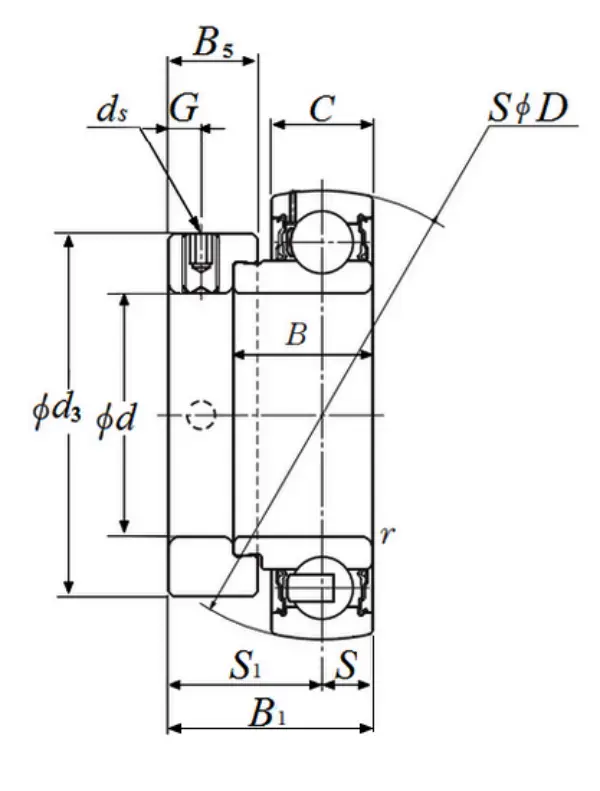

Dimensional Specifications
d
30.163 mm
D
62.000 mm
C
16.000 mm
B
23.800 mm
B1
35.700 mm
r
0.500 mm
ds
M6x1
G
6.000 mm
d3
44.500 mm
B5
15.900 mm
S1
27.700 mm
S
8 mm
