NTN SES211-35
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Stainless Steel
Ball Material
Steel
Limiting Speed - Grease
2400 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL211-35
Lubrication
Relubricatable
Basic Outer Ring
211
Static Load Rating
25500 N
Dynamic Load Rating
34000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

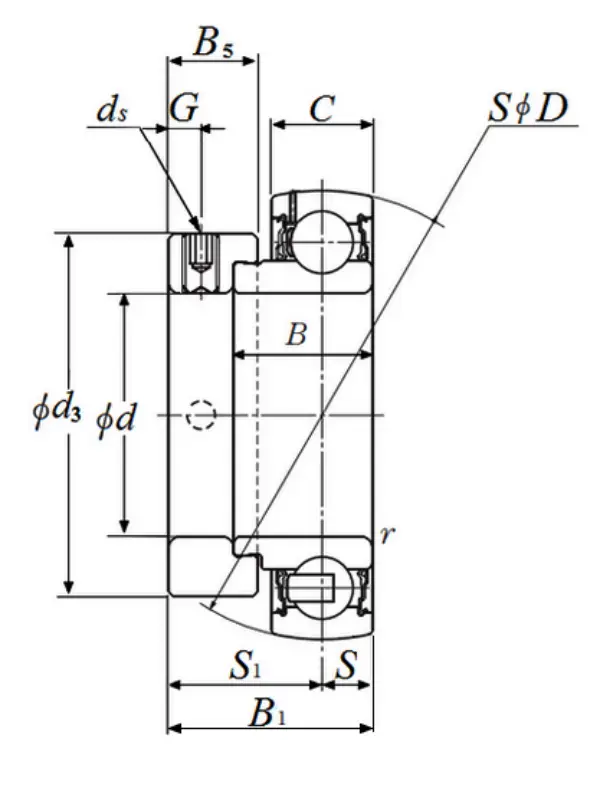

Dimensional Specifications
d
55.563 mm
D
100.000 mm
C
21.000 mm
B
32.500 mm
B1
48.400 mm
r
1.000 mm
ds
M10x1.25
G
8.000 mm
d3
76.200 mm
B5
20.7 mm
S1
37.900 mm
S
10.500 mm
